Ultrasonic Sensors

Ultrasonic sensor solutions for almost any application

Ultrasonic sensors – the allrounders amongst the sensors – always come into use when optical systems reach their limits. Hence, partially and fully transparent or extremely dark objects can be detected just as easily as objects with reflect- ing surfaces or objects in dusty, vaporous or humid environments.

Other advantages at a glance:

  • Mainly surface-independent switching behavior with sound reflecting materials;
  • Excellent background suppression due to propagation time measure- ment;
  • Systems with especially narrow sound cone for the detection of small objects or of objects with extremely small openings;
  • Systems with teach-in function on the device and /or by cable Systems with adjustable switching frequency or sound cone shape.

Cubic ultrasonic sensors - LSU18

  • High sound pressure, therefore suitable for air transport systems;
  • Detection of narrow gaps;
  • Insensitive to dust;
  • Switching frequency max: 100 Hz;
  • Overall dimension: 15 x 50 x 33 mm (W x H x D);
  • Operating ranges: 0 – 650 mm;
  • Response time: 5ms.

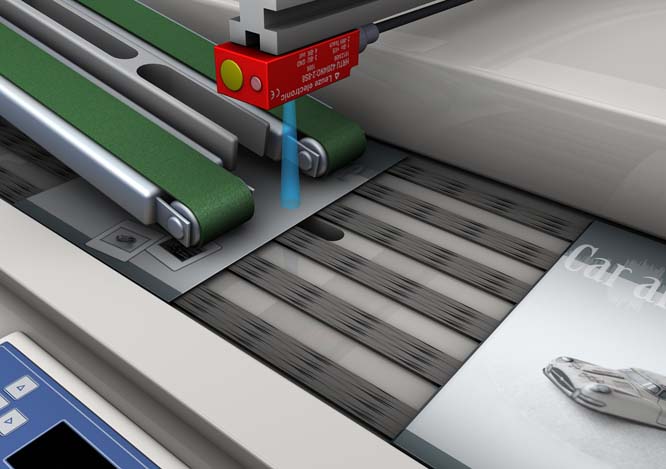

Cubic ultrasonic sensors - HRTU 420

  • 3 different opening angles and sound cones: narrow, standard, wide;
  • Teach-in on the device and via a cable;
  • Protection against erroneous operation by automatically locking teach button;
  • Overall dimension: 20 x 42 x 15 mm (W x H x D);
  • Scanning ranges [mm]: Narrow sound cone: 10 – 200; Standard sound cone: 40 – 400; Wide sound cone: 100 – 1,000;
  • Response times [ms]: Narrow sound cone: 10; Standard sound cone: 25; Wide sound cone: 50;
  • Resolution:1 mm;
  • Reproducibility: ≤ ±0.5 mm.

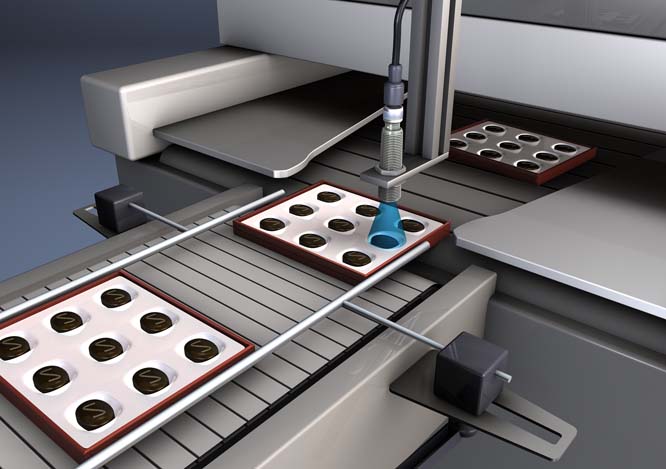

Cylindrical Ultrasonic Sensors - HRTU412

  • 2 different opening angles and sound cones: narrow, standard ;
  • Teach-in via a cable;
  • Protection against erroneous operation by automatically locking teach button;
  • Overall dimension [mm]: M12 x 1;
  • Scanning ranges [mm]: Narrow sound cone: 10 – 200;
  • Response times [ms]: Narrow sound cone: 10;
  • Resolution [mm]: 1;
  • Reproducibility [mm]: ≤ ±0.5.

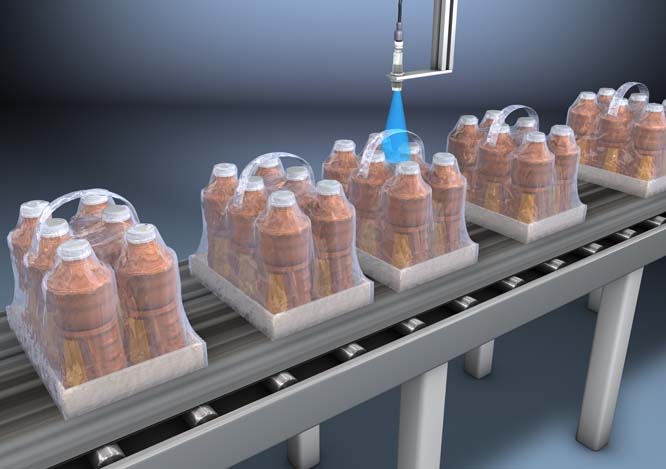

Cylindrical Ultrasonic Sensors - HRTU418

  • Model with angled head (sound exit 90 degrees to the longitudinal axis of the sensor);
  • Short construction;
  • 2 independent switching outputs, teach-in via a cable;
  • Overall dimension [mm]: M18 x 1;
  • Measurement ranges [mm]: 50 - 300; 150 - 1000;
  • Response times [ms]: 100; 120;
  • Resolution [mm]: 1;
  • Reproducibility [mm]: ±1 ±2 ;
  • Temperature compensation: Yes.

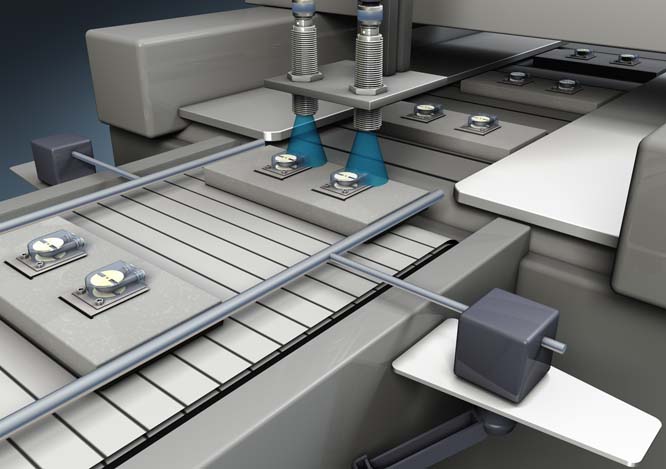

Cylindrical Ultrasonic Sensors - HRTU430

  • Two switching outputs with separate adjustment of start and end of switching range (Q1) via potentiometer and PC software;
  • To avoid mutual interference, max. 10 sensors may be synchronized via one cable;
  • All basic functions and switching outputs configurable via PC software;
  • Overall dimension [mm]: M30 x 1.5;
  • Measurement ranges [mm]: 60 – 300; 200 – 1,300; 400 – 3,000; 600 – 6,000;
  • Response times [ms]: 80; 110; 200; 400;
  • Resolution [mm]: <=1; >=1; >=1; >=1;
  • Reproducibility [mm]: ±0.45; ±2 ; ±5; ±9;
  • Temperature compensation: Yes.
